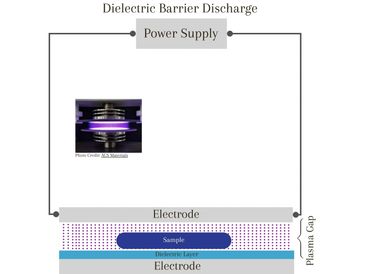

Dielectric Barrier Discharge

DBD discharge is characterized by its unique configuration and operational dynamics, allowing for stable plasma generation without the risk of arcing. Using electrodes separated by a dielectric material, DBD ensures controlled ionization within a defined gap, resulting in non-thermal plasma suitable for various applications. The process generally involves the following steps:

Configuration and Design:

• Electrodes: DBD reactors consist of two electrodes separated by a dielectric material. The dielectric layer plays an important role in preventing the discharge from transitioning into an electrical arc or spark, enabling stable plasma production.
• Discharge Gap (Plasma Gap): The plasma gap between the electrodes can range from a few microns to several centimeters (cm). Reactor configurations are typically arranged in planar or cylindrical geometries.
• Dielectric Layer: The dielectric layer, also known as the dielectric barrier, is typically placed on at least one electrode, helping to control discharge dynamics by stabilizing the electric field. The properties of this layer—such as thickness and dielectric constant—significantly impact the discharge performance.
• Reactor Design: DBD reactors can be designed as Volume Dielectric Barrier Discharges (VDBD) or Surface Dielectric Barrier Discharges (SDBD), influencing ignition location and plasma behavior.

Plasma Formation and Propagation:

• Ionization: When a high voltage—alternating current (AC) or direct current (DC) converted to AC—is applied, electric charge accumulates on the surface of the dielectric material. This accumulation creates an opposing electric field that counteracts the applied field, preventing new electric streamers (ionized paths of plasma through the gas) from forming in the same location during the same half-cycle of the AC voltage.
• Streamer Formation: As a result, streamers form randomly across the entire discharge gap. Each streamer has a very brief lifetime, typically dissipating within nanoseconds, while new transient streamers form with every half-cycle of the AC voltage.
• Memory Effect: As the voltage polarity reverses, the stored surface charge and ionized gas facilitate the reformation of streamers in the same positions during the next half-cycle, leading to spatially localized micro-discharges. This behavior, known as the memory effect, enhances discharge stability and uniformity.
• Self-Sustaining Plasma: DBDs can generate a series of micro-discharges in a non-thermal plasma state. When conditions are suitable, they can sustain themselves through a combination of ionization and the energy supplied by the electric field, allowing continuous operation after initiation.

Frequency and Voltage Characteristics: A typical DBD operates with AC power at frequencies ranging from 50 hertz (Hz) to 500 kHz, with applied voltages between 1 kV and 15 kV, depending on the specific reactor configuration.

Reactive Species Generation:

• Reactive Species Generated: Ozone (O₃), hydroxyl radicals (•OH), and various nitrogen oxides (NOx).
• Importance: DBDs are particularly effective at generating ozone, widely used in sterilization processes and wastewater treatment. Their stable conditions allow for continuous plasma generation, resulting in the sustained production of reactive oxygen species (ROS) essential for oxidation reactions.

Discharge Characteristics: Due to the streamer mechanism at atmospheric pressure, DBD micro-discharges exhibit a filamentary structure. This structure allows for the effective generation of reactive species while maintaining non-equilibrium conditions, enhancing the versatility of DBD technology for multiple applications.

Non-Thermal Plasma: DBD is predominantly characterized as a non-thermal plasma. The dielectric material prevents the development of arc discharges, allowing the generation of high-energy electrons while maintaining a low bulk gas temperature—this benefits applications requiring sensitive surface modifications or chemical processes without unwanted thermal effects. However, DBD can also exhibit localized thermal effects at higher power levels, facilitating processes requiring mild heating.

DBDs can be categorized into two primary types based on the discharge setup configuration:

Volume Dielectric Barrier Discharge (VDBD): In this configuration, the space between the electrodes contains a dielectric material, allowing plasma ignition within the discharge gap.

Typical setups for VDBDs include:

• Parallel Plates: Feature parallel plates with dielectric layers placed on one or both electrodes or centered between them.
• Packed Bed: Various packing materials can be used in direct contact with the plasma in this configuration.

Discharge Gap: Typically ranges from 0.1 millimeters (mm) to several centimeters (cm).

Applied Voltages: Operating voltages range from 1 kV to 15 kV.

Applications: Various applications include:

• Medical Applications: Used to prevent inadvertent contact with the powered electrode.
• Ozone Production: Commonly used in cylindrical configurations for large-scale ozone applications.
• Chemical Reactions: Effective for disinfection, surface modification, and gas-phase chemistry.

Surface Dielectric Barrier Discharge (SDBD): In this configuration, the space between the electrodes is completely filled with dielectric material. Plasma ignites on the surface of the dielectric exposed to the gas volume. Streamers develop near the electrodes where the electric field is strongest due to the non-uniformity in field distribution.

Applications: SDBDs are promising for industrial gas and air treatment applications. They enable efficient ozone production and the decomposition of air pollutants. Plasma ignition can be effectively controlled by adjusting the electric field and input voltage to decompose harmful gases.

DBDs operate efficiently at atmospheric pressure and are also referred to as silent discharges or partial discharges, highlighting their versatility across various applications, including:

• Surface Treatment: DBDs modify the surface properties of materials by improving wettability, adhesion, or functionalization in polymers and textiles.
• Ozone Generation: DBDs produce ozone (O₃), which is used for water purification, air cleaning, and disinfection.
• Biomedical Applications: The use of DBDs in sterilization and contamination prevention in medical devices.

Advantages:

• Simple Design and Low Cost: DBD reactors are relatively straightforward and cost-effective to manufacture, making them accessible for various applications.
• Uniform Plasma Production: The configuration allows for stable and uniform plasma generation, ensuring consistency in treatment outcomes.
• Suitable for Atmospheric Pressure Operations: DBDs can operate efficiently at atmospheric pressure, making them versatile for various industrial applications.

Disadvantages:

• High Voltage Requirements: Operating voltages typically range in the kilovolt (kV) range, which poses safety concerns and requires specialized equipment.
• Limited Efficacy in Low-Pressure Environments: DBD systems are less effective under low-pressure conditions, limiting their application versatility.

1. RSC Publishing. (2020). "Dielectric Barrier Discharge Technology: Comprehensive Review". Journal of Materials Chemistry.

2. SpringerLink. (2021). "Advances in Plasma Technology: Applications and Innovations". Plasma Physics and Technology.

3. MDPI. (2021). "Dielectric Barrier Discharge: Mechanisms and Applications". Applied Sciences.

4. Egyptian Journal of Chemistry. (2020). "Plasma Treatment in Industrial Processes: A Review".

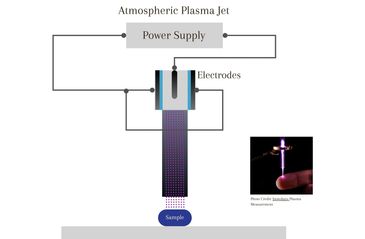

APPJ discharges are characterized by their distinctive jet-like configuration and the production of non-thermal plasma at atmospheric pressure. Using high-frequency power sources, APPJs facilitate the ionization of a flowing gas, resulting in a directed stream of reactive species suitable for various applications. The process generally involves the following key elements:

Configuration and Design:

• Electrodes: APPJs typically consist of two concentric cylindrical electrodes, sometimes separated by a dielectric material. The inner electrode is connected to a radio frequency (RF) or microwave (MW) power source that operates at high frequencies, allowing for efficient ionization of the working gas as it flows through the electrodes. This design is critical for effective plasma generation. The energized gas is expelled through a nozzle, producing a jet-like appearance characteristic of APPJs.
• Dielectric Layer: In configurations where a dielectric material is present, it ensures efficient ionization and stability.
• Discharge Gap (Plasma Gap): The discharge gap in APPJs is the space between the electrodes where gas ionization occurs. The size of the discharge gap has a significant influence on the breakdown voltage and ionization efficiency. An optimized gap allows for maximum ionization while preventing the transition to a thermal arc discharge. Depending on the specific configuration and application, the discharge gap can range from a few hundred micrometers (μm) to several millimeters.
• Gas Medium: Noble gases such as helium and argon are the primary working gases used in APPJs, often mixed with ambient air. These gases help generate the necessary reactive species while maintaining non-thermal conditions. The gas flow rate is critical for sustaining the jet and optimizing the reactive environment.
• Other Design Considerations: APPJs can be configured in various ways, including:
  — Single Electrode Jets: A simplified design that enhances ionization from the surrounding gas flow. It typically involves a single actively driven electrode, allowing for simplified operation in small-scale applications.
  — Dielectric-Free Electrode Jets: Configurations without a dielectric layer may allow for higher ionization rates due to less impedance in the discharge, but can be less stable.
  — Dielectric Barrier Discharge (DBD) Jets: These setups use DBD principles while maintaining a jet structure. They use a dielectric to stabilize the discharge and enable jet formation.
  — Plasma Pens and Needles: Miniature versions of APPJs with sharpened electrodes used in localized treatments. These devices are ideal for applications such as dental procedures, wound healing, and other precise biomedical applications where targeted plasma delivery is crucial.

Plasma Formation and Propagation:

• Ionization: When the RF or MW power source is activated, it creates an electric field that ionizes the neutral gas, resulting in the generation of plasma. In APPJs, the energetic electrons excite and ionize gas atoms, forming a stream of reactive ions, electrons, and neutral species. The energetic particles within the plasma create a highly reactive environment, which is central to APPJ applications.
• Self-Sustaining Plasma: APPJ can achieve self-sustaining plasma states, but this capability varies depending on the design and configuration. They maintain stable discharge conditions in ambient environments without requiring constant energy input, relying on gas flow (often air) and initial energy for stabilization. Once the plasma jet is established, it can sustain itself; however, periodic energy input may still be necessary to generate reactive species.

Frequency and Voltage Characteristics:

• APPJs primarily operate using RF or microwave frequencies, generally ranging from 10 MHz to several GHz, with voltages typically in the range of several kilovolts. This high-frequency operation is crucial for achieving effective ionization and maintaining plasma stability. The power supply frequency affects the efficiency of ionization and the energy distribution among the generated species, influencing reactive capability and uniformity within the plasma.

Reactive Species Generation:

• Reactive Species Generated: Reactive nitrogen species (RNS), ozone (O₃), and various excited atoms and molecules (e.g., metastable helium).
• Importance: APPJs are notable for their localized delivery of reactive species, making them ideal for applications such as surface modification and sterilization. Generating RNS is particularly valuable in biomedical applications, where it can induce cell apoptosis or enhance wound healing.

Discharge Characteristics: The plasma generated by APPJs exhibits a visible glow, indicating the presence of ionized gases and reactive species. The plasma jet's diameter is typically a few millimeters, making it suitable for targeted applications. The weak light emitted during operation reflects the plasma's interaction with the surrounding ambient air.

Non-Thermal Nature: APPJs are predominantly characterized as non-thermal plasmas, where high-energy electrons are generated while maintaining a low bulk gas temperature. This non-thermal nature allows APPJs to efficiently produce reactive species, making them particularly effective in applications that require maintaining the integrity of heat-sensitive materials. Furthermore, the ability to deliver reactive species without significant thermal damage enhances the potential for precise chemical reactions and surface interactions. While APPJs are primarily non-thermal, localized thermal effects can occur when operated at higher power levels or specific configurations, which is beneficial for applications requiring mild heating, such as in certain material processing or enhanced catalytic reactions.

APPJs have a wide range of applications, including:

Surface Treatment: APPJs are extensively used to modify the surface properties of materials, particularly in the following areas:

• Polymer Surface Activation: Enhancing wettability and adhesion for better bonding with coatings or adhesives.
• Thin Film Deposition: Assisting in chemical vapor deposition processes for creating thin films.

Biomedical Applications: The reactive species generated in APPJs have various biomedical uses, including:

• Sterilization: Effectively killing bacteria and other pathogens on surfaces or medical equipment.
• Wound Healing: Promoting faster healing through enhanced sterilization and stimulation of cell proliferation.
• Tissue Treatment: Targeting specific tissues for localized treatment during surgical procedures.

Gas Cleaning: APPJs have shown potential in environmental applications for removing pollutants from gas streams. They can effectively decompose volatile organic compounds (VOCs) and nitrogen oxides (NOx), improving air quality.

Advantages:

• Operation at Atmospheric Pressure: This enables easier integration into various industrial and laboratory settings, thereby reducing the complexity often associated with vacuum systems.
• Flexible Design: Adaptable configurations enable specific applications and targeted solutions for different materials.
• Non-Thermal Processing: The low thermal impact makes APPJs suitable for treating heat-sensitive materials without damage.

Disadvantages:

• Limited Plasma Volume: The APPJ's small scale may restrict its effectiveness for larger-area treatments or bulk material processing, making it less suitable for some industrial applications.
• Complexity in Scaling Up: Scaling APPJ technology for industrial applications can present challenges in maintaining uniform plasma characteristics over larger areas, which may impact treatment consistency.

 1. MDPI. (2021). "Atmospheric Pressure Plasma Jets: Current Applications and Future Prospects." Applied Sciences.

2. RSC Publishing. (2020). "The Role of Plasma Technology in Biomedical Applications." Journal of Materials Chemistry.

3. SpringerLink. (2021). "Review on Atmospheric Pressure Plasma Jets: Mechanisms and Applications." Plasma Physics and Technology.

4. Egyptian Journal of Chemistry. (2020). "Plasma Processing for Environmental Applications."

Corona discharge involves the ionization of the surrounding air, facilitated by a high voltage applied to a sharp or pointed electrode. This creates a non-thermal plasma characterized by distinct ionization dynamics and reactive species generation. The process generally involves the following key elements:

Configuration and Design:

Electrodes: The primary electrode in a corona discharge is typically a sharp or pointed conductor, often referred to as a corona electrode. Common electrode shapes include:

• Needles: Sharp needle-like electrodes are often used due to their ability to generate strong electric fields.
• Wires: Thin wires can also be effective corona electrodes, especially when configured at acute angles.

Geometry:

• Pointed or Sharp Features: The main characteristic contributing to corona discharge is the electrode's geometry. Sharp points or edges lead to a high electric field strength at the tip, essential for ionizing the surrounding air. The curvature at the electrode tip significantly impacts the electric field gradient, enhancing localized ionization.
• Grounding: Often, the pointed electrode is positioned near or in proximity to a grounded electrode, which can be flat or cylindrical. The distance between the corona and ground electrodes is critical, affecting the voltage required to initiate and maintain the discharge. A well-defined gap ensures a controlled discharge process, enabling effective ionization.

Dielectric Layer: While traditional corona discharges do not always require a dielectric, incorporating one can help stabilize the discharge and modify the electric field distribution. In some configurations, dielectric barriers may surround or be positioned near the electrodes, affecting how the electric field interacts with the surrounding environment.

Discharge Gap (Plasma Gap): The discharge gap refers to the space between the corona and ground electrodes. This gap must be optimized, as it determines the breakdown voltage necessary to initiate the corona discharge. The distance should be minimal to ensure effective ionization while preventing arcing. Depending on the application and operational conditions, the typical distance can vary, ranging from a few millimeters to several centimeters.

Gas Medium: The gas medium in a corona discharge is usually ambient air, which serves as the primary dielectric. The presence of air enables the ionization process, leading to the generation of reactive species. However, other gases, such as nitrogen or inert gases, can be introduced to manipulate the discharge characteristics and enhance the production of specific reactive species. The humidity and temperature of the gas medium can also significantly influence the breakdown voltage and discharge stability.

Reactor Designs:

• Point-to-Plane Configuration: In this common setup, the pointed electrode is placed close to a flat grounded surface. This configuration effectively generates corona discharge in the air.
• Point-to-Cylinder Configuration: In this configuration, the sharp electrode is positioned near a cylindrical conductor, allowing discharge along the cylinder's surface.
• Surface Corona Discharge: In this configuration, the discharge occurs near the surface of a material, enhancing its properties. The high electric field near the pointed electrode ionizes the surrounding air, generating reactive species that are beneficial for surface cleaning and modification.

Plasma Formation and Propagation: Corona discharge is initiated when a high voltage is applied to a sharp or pointed electrode, resulting in the ionization of the surrounding air. The process involves several key steps:

Ionization: When the voltage applied to the corona electrode exceeds the breakdown voltage of the surrounding air, it creates a strong electric field near the tip of the electrode, ionizes air molecules, and produces free electrons and positive ions.

Streamer Formation: The free electrons gain kinetic energy and collide with nearby neutral air molecules, resulting in further ionization. This cascading effect produces ionization "streamers" that propagate outward from the electrode, extending the ionized region.

Propagation of the Discharge: The corona discharge can propagate along the surface of the electrode and into the surrounding air. The electric field gradient influences the process, sustaining continuous discharge as long as the conditions remain favorable (adequate voltage and external gas conditions).

Self-Sustaining Plasma: Once initiated under the right conditions, the corona discharge can become self-sustaining. As long as the electric field and environmental factors (such as air density) support ongoing ionization, the discharge can continue without a significant continuous power supply.

Frequency and Voltage Characteristics: A typical corona discharge system operates with voltages between 5 kV and 20 kV. Voltage stability is important for maintaining corona conditions. Unlike DBDs, which use alternating current (AC) or high-frequency power, corona discharges can operate with either AC or direct current (DC). The frequency of operation can vary but often ranges from 50 hertz (Hz) up to several kilohertz (kHz), depending on the specific configuration and environmental factors such as humidity.

Reactive Species Generation:

Reactive Species Generated: Ozone (O₃), nitrogen oxides (NO, NO₂), and various reactive oxygen species (ROS).

Importance: Corona discharge is highly effective at producing ozone and is commonly used in air purification systems. The generated nitrogen oxides can also contribute to reactions that enhance disinfection processes, making corona discharges particularly useful in addressing environmental pollutants.

Discharge Characteristics: During operation, the corona discharge creates a visible "corona glow" around the electrode, indicating the presence of ionized air and active ionization processes. Unlike the transient micro-discharges in dielectric barrier discharge (DBD), which only last for nanoseconds, corona discharge establishes a more stable ionized region around the electrode, resulting in continuous operation.

Non-Thermal Plasma: Corona discharge is predominantly characterized as a non-thermal plasma. The high electric fields created in point-to-plane configurations generate ionization at relatively low temperatures. This non-thermal nature is advantageous for applications such as air purification, ozone generation, and surface treatment, where generating reactive species without significantly heating the surrounding materials is crucial. The ability is essential for effective chemical reactions and contaminant removal while preserving the integrity of heat-sensitive substrates. However, corona discharge can exhibit localized thermal effects under higher power conditions, which may enhance certain processes that require increased energy input.

Corona discharge is an efficient method for generating non-thermal plasma that is useful in various applications, particularly where producing reactive species with minimal thermal impact is essential. Some notable applications include:

Positive Corona Discharge: This occurs when a high positive voltage is applied to an electrode, creating a strong electric field that ionizes the surrounding air.

• Mechanism: Ionization starts at the tip of the positively charged electrode, resulting in the ionization of nearby air molecules. The free electrons are then propelled away from the electrode into the surrounding air, where they can collide and ionize additional neutral air molecules, creating a cascading effect of ionization. As this process continues, the positive ions migrate toward the electrode due to electrostatic attraction while the free electrons move away. This interaction creates a dynamic balance between ionization and charge movement.
• Current Flow: In positive corona discharge, the current flow is directed away from the electrode, with released free electrons entering the surrounding space. This results in a net charge movement away from the positively charged electrode.
• Applications: Positive corona discharge is commonly used to generate ozone in applications such as air purification and water treatment. It can also be used in certain surface treatment processes to enhance the surface properties of materials.

Negative Corona Discharge: This occurs when a high negative voltage is applied to the electrode, creating a strong electric field that ionizes the air surrounding it.

• Mechanism: Ionization begins near the tip of the negatively charged electrode. Electrons are released from the electrode and propelled into the surrounding air, colliding with neutral air molecules and ionizing them. The freed electrons move away from the electrode, while the positive ions are attracted back to the negatively charged electrode.
• Current Flow: In negative corona discharge, the flow of current is directed from the electrode into the surrounding space, resulting in a net movement of charge away from the electrode due to released electrons dispersing into the air.
• Applications: Negative corona discharge is often used in surface treatment processes to enhance the adhesion properties of materials.

Surface Corona Discharge: In this configuration, the discharge occurs along or near the surface of a material, facilitated by an applied electric field from the corona electrode. This type of discharge can use either a positive or negative voltage, depending on the specific application and desired effects.

• Mechanism: When a voltage is applied to a sharp or pointed electrode close to a surface, a strong electric field is established, ionizing the air immediately surrounding the electrode.
  — Positive Voltage: This discharge occurs primarily when free electrons move away from the positively charged electrode, generating reactive oxygen species and ozone, which are beneficial for surface cleaning and disinfecting applications.
  — Negative Voltage: Ionization primarily occurs from the electrode into the air, promoting the movement of positive ions toward the electrode. This enhances surface treatment effects by improving the adhesion properties and wettability of materials such as plastics and metals.
• Current Flow: The flow of current in surface corona discharge largely depends on the polarity of the applied voltage. This discharge creates a region of ionization near the surface, leading to effective charge transfer and the generation of reactive species, all while maintaining a non-thermal environment.

Surface Treatment: Enhances the adhesion properties of surfaces by increasing their surface energy, making them more suitable for coatings and adhesives.

Ozone Generation: Positive voltage plays a critical role in generating ozone, which is used for air purification and water treatment applications.

Sterilization and Cleaning: The reactive species generated can be used to effectively clean and sterilize surfaces in medical and food-related industries.

Electrostatic Precipitation: Corona discharges can effectively charge and collect particulates in gas streams, enabling electrostatic precipitation to control air pollution.

 Advantages:

• Simple Design: The setup for corona discharge applications is typically straightforward, requiring less complex hardware than some other discharge types.
• Low Operating Cost: Generally cost-effective to operate, with relatively low energy consumption compared to high-pressure discharge systems.
• Versatile Applications: Useful in various fields, including environmental remediation and material processing, due to its ability to generate reactive species and modify surfaces.

Disadvantages:

• Limited Penetration Depth: Corona discharge is generally effective only for surface treatment and may not be suitable for processing bulk materials.
• Sensitivity to Environmental Conditions: Environmental conditions such as humidity and temperature can affect performance and influence ionization and discharge characteristics.
• Ozone Generation Limitation: While ozone generation can be beneficial, excessive ozone production poses health risks and requires careful management to mitigate potential hazards.

 While DBDs generate a uniform plasma between electrodes separated by a dielectric layer, corona discharge occurs in the environment surrounding a conductive electrode, relying on the ionization of the surrounding air rather than a dielectric barrier. The non-uniform electric field in corona discharges distinguishes them from the more homogenous field found in DBD systems, affecting their operational characteristics and plasma properties.

1. MDPI. (2020). "Fundamentals of Corona Discharge: Mechanisms, Applications, and Environmental Impacts." Applied Sciences.

2. SpringerLink. (2020). "Plasma Discharges: Theory and Applications." Plasma Physics and Technology.

3. RSC Publishing. (2021). "Corona Discharge in Environmental Cleanup: A Review." Environmental Science: Processes & Impacts.

4. Egyptian Journal of Chemistry. (2020). "Corona Discharge for Surface Modification: Mechanisms and Applications."

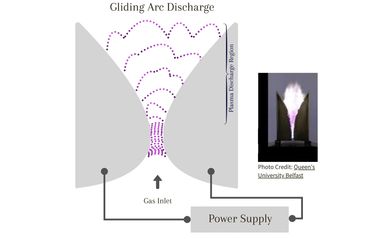

Gliding arc discharges consist of two electrodes that diverge from one another, creating a gap where the discharge can initiate. The design typically involves:

Configuration and Design:

• Diverging Electrodes: Gliding arc discharges consist of two electrodes that diverge from one another, creating a gap where the discharge can initiate. This divergence is important for maintaining the arc stability and controlling plasma characteristics. The configuration encourages the arc to glide along the surface of the electrodes.
• Dielectric Layer: In some configurations, dielectric materials may be incorporated to help control the electric field distribution and stabilize the arc. Dielectrics can help shape the electric field precisely, enhancing the ionization process and aiding arc stability. However, many gliding arc systems operate without dielectric layers, relying instead on the gas flow dynamics and electrode design.
• Discharge Gap (Plasma Gap): The discharge gap is the space between the diverging electrodes where the arc forms. The size of this gap affects both the breakdown voltage and the length of the arc. Typically, the gap can range from a few millimeters to several centimeters, depending on the design and application requirements.
• Gas Flow: A high-speed gas flow, such as air, nitrogen, or methane, passes between the electrodes. The gas flow helps stabilize the plasma and quench the arc, preventing excessive heating of the electrodes and surrounding materials while enhancing the generation of reactive species.

Plasma Formation and Propagation: The gliding arc discharge is initiated when a high voltage is applied across the diverging electrodes, creating a localized region of ionization at the point where the distance between the electrodes is the shortest (typically in the millimeter (mm) range). The process is as follows:

• Arc Initiation: The high voltage ionizes the gas, forming a conductive plasma channel that allows current to flow.
• Gliding Mechanism: As the gas flows, the arc moves or "glides" along the diverging electrodes, gradually increasing in length and volume in the gas flow direction. The arc's continuous movement allows it to follow the gas flow, maintaining a continuous discharge.
• Self-Sustaining Plasma: Gliding arc discharges can be self-sustaining due to the arc's continuous movement along the surface of the electrodes. This movement prevents overheating at any stationary point and allows the discharge to sustain itself within the ionized region, provided the operational conditions (voltage, gas type, pressure) remain favorable.

Frequency and Voltage Characteristics: Gliding arc discharges typically operate in the kilovolt (kV) range, often between 5 kV and 30 kV, depending on the specific configuration and application requirements. While fixed frequencies are not usually a characteristic of gliding arcs, dynamic adjustments to power supply settings (alternating current (AC) or pulsed direct current (DC)) allow adaptation to variations in the gas glow and electrode positioning. This ensures reliable arc initiation and stability.

Reactive Species Generation:

• Reactive Species Generated: Various radicals (e.g., hydrogen radicals, hydroxyl radicals) and ozone (O₃).
• Importance: Gliding arc discharges are known for their capacity to produce high-energy electrified gases and a wide array of reactive species that can catalyze combustion and material processing reactions. The versatility in generating different radicals allows for various applications, from energy generation to waste treatment. The reactive species generated are essential for efficient chemical processes, enhancing the reactivity in applications involving fuel conversion, air purification, and surface treatments.

Discharge Characteristics: Gliding arc discharges exhibit a filamentary structure as the arc moves along the diverging electrodes. This creates non-uniform plasma characteristics that vary with gas flow rates and electrode configurations. The reactivity of gliding arc discharge is notably high, as the energetic electrons and reactive species generated during the discharge facilitate various chemical reactions.

Non-Thermal Nature: Gliding arc discharges are primarily classified as non-thermal plasmas, especially under typical operating conditions where the bulk temperature of the gas remains low. This allows for the efficient generation of reactive species without significant heat transfer to surrounding materials, making gliding arc discharges particularly valuable for applications requiring sensitivity to thermal effects, such as surface treatment and pollution control. While gliding arc plasma is characterized by its non-thermal operation, it can produce thermal effects under certain conditions, such as increased power levels and optimized operational parameters. These hot plasma conditions are useful for processes requiring higher energy input, such as material melting or destructive waste treatment.

Combustion Enhancement: Gliding arc discharges can enhance combustion processes by improving the fuel efficiency in internal combustion engines and industrial burners. Introducing reactive species into the combustion chamber can promote better fuel ignition and increase thermal efficiency.

Gas Conversion: The high-energy electrons and reactive species produced in gliding arc discharges can convert gases such as methane (CH₄) or carbon dioxide (CO₂) into more valuable products, including higher hydrocarbons or syngas (a mixture of hydrogen and carbon monoxide). This capability makes it a promising technology for carbon capture and utilization.

Surface Treatment: Similar to other non-thermal plasma techniques, gliding arc discharges can modify the surface properties of materials. Applications include:

• Surface Activation: Enhancing adhesion properties of polymers and textiles by increasing surface energy.
• Functionalization: Introducing reactive groups to surfaces for specific chemical reactions or coatings.

Advantages

• Operation at Atmospheric Pressure: Gliding arc discharges can operate without vacuum systems, simplifying implementation in various industrial processes.
• High Reactivity: Producing a wide variety of reactive species enables diverse applications in gas conversion, combustion enhancement, and material processing.
• Versatility: Gliding arc discharges can operate in thermal and non-thermal modes, depending on the power settings and application requirements.

Disadvantages

• Non-Uniform Plasma: The plasma's non-uniform nature can lead to inconsistencies in performance and may require sophisticated control mechanisms.
• Complexity of Control: Maintaining stable operation can be challenging due to the varying discharge characteristics along the diverging electrodes.

 1. MDPI. (2021). "Applications of Gliding Arc Discharge for Energy Conversion Processes." Applied Sciences.

2. SpringerLink. (2021). "Gliding Arc Discharges: Dynamics and Applications." Plasma Physics and Technology.

3. RSC Publishing. (2020). "Reactive Species Generation in Gliding Arc Discharges." Journal of Materials Chemistry.

4. Egyptian Journal of Chemistry. (2020). "Utilization of Gliding Arc Discharges in Environmental Applications."

Nanosecond pulsed discharges are designed to deliver rapid, high-voltage pulses that create localized ionization within the working gas. Key features include:

Configuration and Design:

• Electrode Configuration: The discharge is typically achieved in a gap between two electrodes. Depending on the specific application, these electrodes can have various configurations, including planar setups or rod configurations. High-voltage pulses ionize the gas in the gap, creating a highly conductive plasma channel.
• Dielectric Layer: In some configurations, a dielectric layer may be introduced between or around the electrodes to modulate the electric field and enhance plasma stability. This dielectric can also help shape the discharge characteristics, promote uniform ionization, and maximize the discharge's effective area.
• Discharge Gap (Plasma Gap): The plasma gap is the distance between the two electrodes where the plasma forms. In nanosecond pulsed reactors, the plasma gap generally ranges from 1 mm to several centimeters. A smaller gap (around 1–5 mm) can lead to higher ionization rates and more uniform plasma. In comparison, a larger gap (from 5 mm to 2 cm or more) can accommodate greater gas flow, which may be desirable for certain applications.
• Pulse Generators: Specialized power supply systems deliver fast rise-time voltage pulses to initiate the discharge. These systems are designed to produce high-voltage pulses with very short durations, which helps avoid thermal runaway and maintain the plasma's non-thermal nature. Pulse generators allow for precise control over pulse width, energy, and repetition rate, which is important for tuning the plasma properties to the requirements of specific applications.
• Gas Medium: Various gases, including air, nitrogen, methane, and other reactive gases, are used in NPDs. The choice of gas significantly affects the plasma chemistry and the resulting reactive species.

Plasma Formation and Propagation:

• Short-Duration Pulses: The nanosecond duration of the voltage pulse ensures that electrons in the gas acquire high kinetic energy. This results in efficient ionization while minimizing thermal energy transfer to the gas. This rapid ionization leads to the formation of a transient plasma state.
• Sequential Discharge Events: Each pulse generates a brief yet intense plasma channel, which may cause localized heating but primarily produces reactive species. The energy from each pulse can contribute to ionizing additional gas in subsequent pulses, leading to a cascading ionization effect.
• Continuous Discharge: Nanosecond pulsed discharges do not maintain a continuous discharge state like self-sustaining discharges. Instead, they rapidly apply high-voltage pulses to create short-lived plasma bursts. Each pulse requires an external energy input to generate transient discharges; once the pulse is over, the discharge does not continue without further input. These discharges are particularly advantageous for specific applications, such as material processing or surface treatment.

Frequency and Voltage Characteristics: Nanosecond pulsed discharges typically operate at frequencies ranging from 1 hertz (Hz) to several kilohertz (kHz), depending on the power supply's application and design. Each pulse typically remains within the 1 to 100 nanosecond (ns) range, allowing precise control over the discharge characteristics. The voltage applied during the discharge can be exceptionally high, often reaching between 5 kilovolts (kV) and 100 kV, which is necessary to initiate the discharge while creating the intense electric fields required for rapid ionization. Careful control of voltage is important to ensure stable discharge conditions and avoid excessive thermal heating of the electrodes.

Reactive Species Generation:

• Reactive Species Generated: High-energy radicals, ozone (O₃), and excited molecules (e.g., molecular nitrogen in highly energetic states).
• Importance: This discharge type generates species rapidly due to short pulse widths, enhancing reaction rates. The reactive species produced are particularly effective for ignition enhancement in combustion applications and surface treatments where high reactivity is required in a short time frame.

Discharge Characteristics: During operation, nanosecond pulse discharge creates a highly transient yet intense plasma that emits brief but powerful bursts of ionization. These discharges occur in extremely short time frames, typically on the order of nanoseconds, allowing for rapid ionization and excitation of the surrounding gas without significantly raising its bulk temperature. The brief nature of each pulse generates a series of energetic electrons and reactive species, which contribute to various chemical reactions and material modifications. Unlike continuous discharges, nanosecond pulse discharge offers precise control over plasma characteristics, enabling specific applications in fields such as material processing, pollution control, and biomedical treatments. The ability to generate high peak power in a short duration facilitates the efficient production of reactive species, making this discharge type particularly effective for processes requiring targeted chemical interactions while minimizing thermal effects on sensitive substrates.

Non-Thermal Plasma: Nanosecond discharge is predominantly characterized as a non-thermal plasma, where the extremely short pulse durations lead to high electron temperatures without significant heating of the bulk gas. This non-thermal nature allows for the efficient generation of reactive species and the maintenance of controlled conditions, making nanosecond discharge particularly effective for applications in material processing, such as surface modification and sterilization, where it is crucial to avoid thermal damage to sensitive substrates. However, nanosecond discharges can also produce localized thermal effects when the energy is concentrated in very short bursts, enhancing certain chemical reactions or triggering phase changes in materials. This interplay between the non-thermal and localized thermal characteristics allows for versatile applications across various industries, including biotechnology, electronics, and advanced manufacturing, enabling engineered processing strategies that leverage both the reactive and thermal effects as needed.

Plasma-Assisted Combustion: One of the primary applications of nanosecond pulsed discharges is enhancing and controlling combustion processes. The high-energy electrons and reactive species generated assist in:

• Improving Ignition: Introducing reactive species from the plasma can lower fuel ignition temperatures, resulting in more efficient combustion.
• Enhanced Combustion Stability: Rapidly pulsed discharges promote stability in flame conditions by providing supplemental energy and reactive intermediates.

Gas Conversion: Nanosecond pulsed discharges have been explored for converting various gases, including methane (CH₄) and carbon dioxide (CO₂), into more valuable products such as syngas or hydrocarbons. The high electron energy and fast kinetics facilitate chemical reactions that are typically slow under thermal conditions.

Surface Treatment: As with other non-thermal plasma techniques, nanosecond pulsed discharges can effectively modify the surface properties of materials. Applications include:

• Surface Cleaning: The reactive species generated can remove contaminants and activate surfaces for improved adhesion in coatings and films.
• Wettability Modification: Adjusting the surface energy of materials to enhance wettability or adhesion for various applications, including biomedical devices and packaging materials.

 Advantages:

• High Electron Energy: The pulsed nature allows for rapidly generating high-energy electrons, enhancing reactivity.
• Fast Reaction Kinetics: The short-duration pulses facilitate rapid reactions, making them suitable for applications requiring quick processes.
• High Plasma Efficiency: Efficient energy transfer to the working gas leads to effective plasma generation and utilization.

Disadvantages:

• Complex Equipment Requirements: The necessity for specialized pulse generators and high-voltage systems can increase equipment complexity and cost.
• Thermal Management Challenges: Although the plasma remains non-thermal, managing heat generated by components like electrodes requires careful design and monitoring to avoid thermal degradation.

 1. RSC Publishing. (2021). "Nanosecond Pulsed Discharges: Principles and Applications." Journal of Materials Chemistry.

2. MDPI. (2020). "Nanosecond Pulsed Discharge for Gas Conversion Processes." Applied Sciences.

3. SpringerLink. (2021). "The Role of Non-Thermal Plasma in Combustion Applications." Plasma Physics and Technology.

4. Egyptian Journal of Chemistry. (2020). "Surface Treatment Technologies Using Nanosecond Pulsed Plasma."
